FS-21 Series Medical Foot Switches (IPX8)

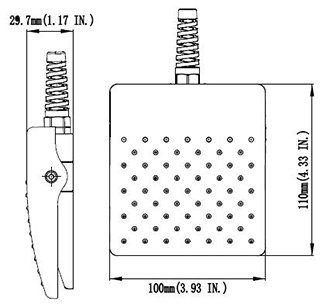

Features: * Robust glass fiber reinforced plastics * Compact design * Galvanically separated contacts with double-break * Various base options available	Installation dimensions:
Specifications: Operating Speed: 60ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage: 10A/15A 1/2HP 250VAC Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life 1,000,000 (operations) Operating Temperature: -30~+80(-22~+176) Degree of Protection: IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FS-21 View Details	TYPE:FS-21-10W-W View Details	TYPE:FS-22-10W-W View Details
TYPE:FS-23-10W-W View Details	TYPE:FS-22 View Details	TYPE:FS-21-10W-T-W-B3-H-2-26/7 View Details
